| HongLi Chains | Width | Min. R. | Working Load(Max.)N | Weight(Kg/m) | ||||
| mm | Inch | R(mm) | SS304 | MS | Plastic | SS304 | MS | |
| HL1873-K1600 | 406 | 16 | 610 | 3400 | 4500 | 3.73 | 1.45 | 1.45 |
| HL1873SE-K1600 | 406 | 16 | 610 | 3400 | 4500 | 4.02 | 1.45 | 1.45 |
SE: With Rubber

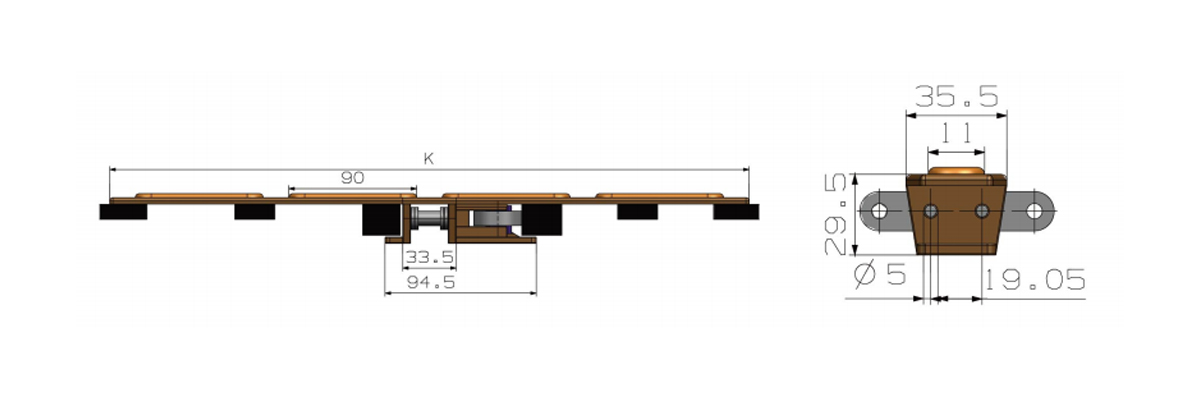

Used in Spiral conveyor, with 6200Z bearing, low firction, long service life. Top chains is POM material. Friction rubber strip is TPR material. Bottom chain is 12A-1 stainless steel or carbon steel optional
