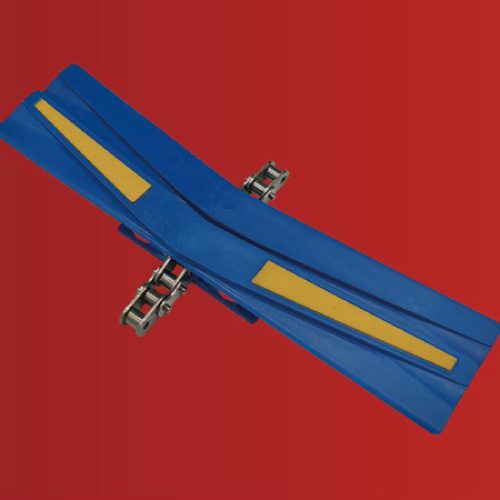

3873 S-Radius ide flex Spiral Top chains Gapless Plate – Twin bearing

3873 S-Radius Side Flex Spiral Top Chains Gapless Plate — Twin bearing

Pitch:	38.1mm
Width Optional:	406mm
Bottom Chain:	12A Side Curve Chain
Bearing:	6200Z
Max Speed:	60m/min

Chat Now

Product Details

Product Parameters

HongLi Chains	Width		Min.R.	Working Load(Max.)N		Weight(KG/M)
HongLi Chains	mm	Inch	R(mm)	SS304	MS	Plastic	SS304	MS
HL3873SR-K1600	406	16	610	3400	4500	5.29	1.45	1.45
HL3873SRSE-K1600	406	16	610	3400	4500	5.29	1.45	1.45

Used in Spiral conveyor, with 6200Z bearing on both side, low service life. Top chains is POM material. Friction rubber strip is TPR material. Bottom chain is 12A-1 stainless steel or carbon steel optional.
