| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL175-LB-PB | 175 | 1.53 | R500 | POM | 2800 | SUS |

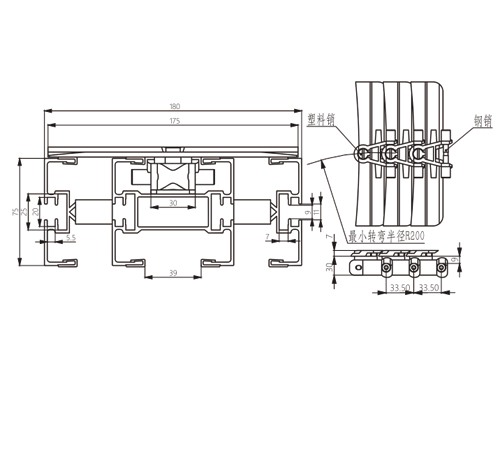

| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | The chain conveyor travels along four guide rails. It features a curved rail and side-bending safety chain. Compact horizontal and vertical bends; suitable for flexible packaging, large cardboard, soft plastics, and other products. Examples include: laundry detergent, packaging paper tubes, food, and personal care products. | |||
| 33.5 | 6 | RD70 | ||||
