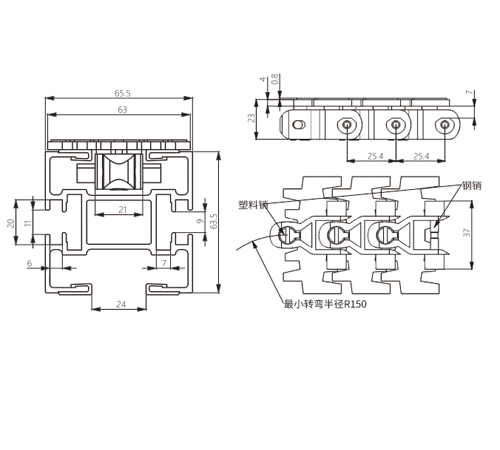

| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL63-LB-QJ | 63 | 0.7 | R150 | POM | 2100 | SUS201 |

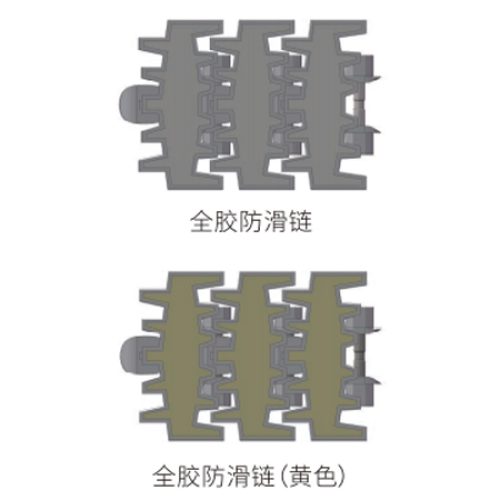

| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Used for conveying items on inclined conveyor lines, with a durable, wear-resistant, non-slip rubber coating. | |||
| 25.4 | 4 | RD70 | ||||
