Product Parameters
| HongLi Chains | Width | Min. R. | Working Load(Max.)N | Weight(Kg/m) | ||||
| mm | Inch | R(mm) | SS304 | MS | Plastic | SS304 | MS | |
| HL3872-K550-L | 140 | 5.5 | 450 | 3400 | 4500 | 2.10 | 1.45 | 1.45 |
| HL3872SE-K550-L | 140 | 5.5 | 450 | 3400 | 4500 | 2.10 | 1.45 | 1.45 |
SE: Width Rubber

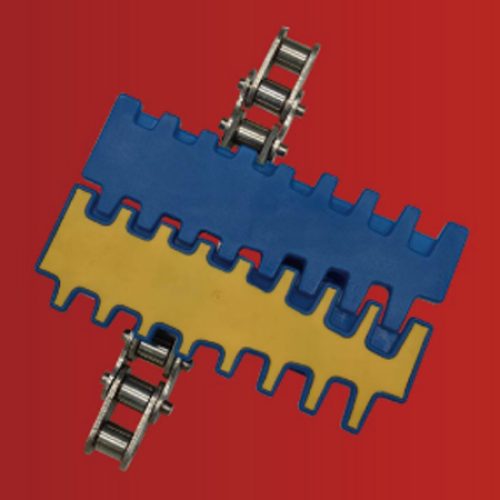

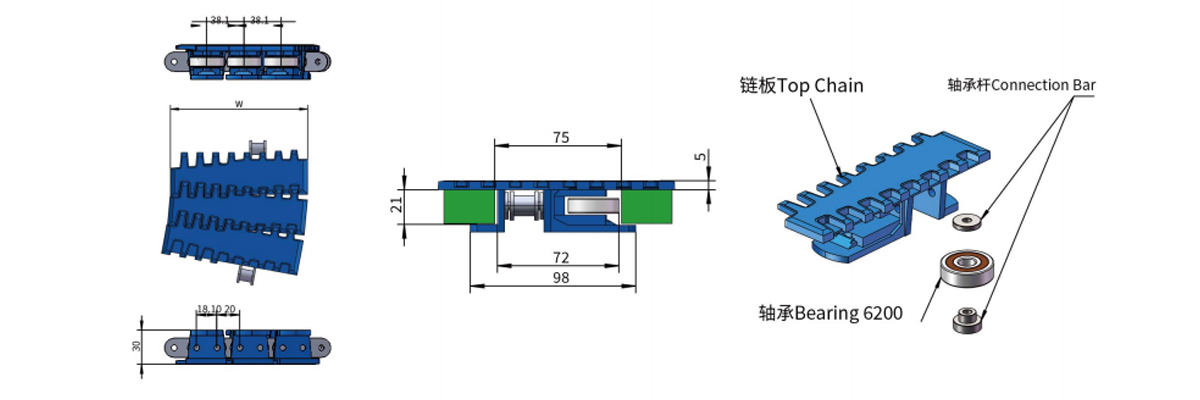

Used in Spiral conveyor, with 6200Z bearing, low friction, long service life. Top chains is POM material. Friction rubber strip is TPR material. Bottom chain is 12A-1 stainless steel or carbon steel optional
