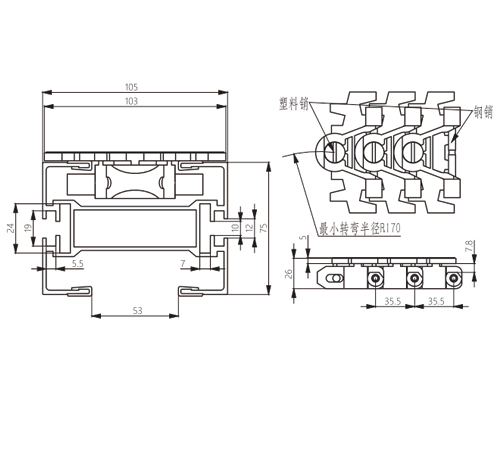

| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL103-LB-GD | 103 | 2.80 | R170 | POM | 3100 | SUS |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | If the products being transported would cause excessive wear on the standard chain, a steel top chain can be used instead of a standard flat chain. It is primarily used in the machinery manufacturing industry to transport cast or machined parts with sharp edges. Based on the standard flat chain, the steel top chain has the same technical characteristics. | |||
| 35.5 | 6 | RD100 | ||||
