| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||

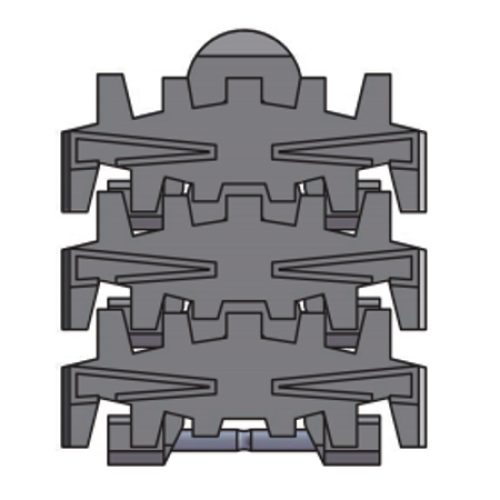

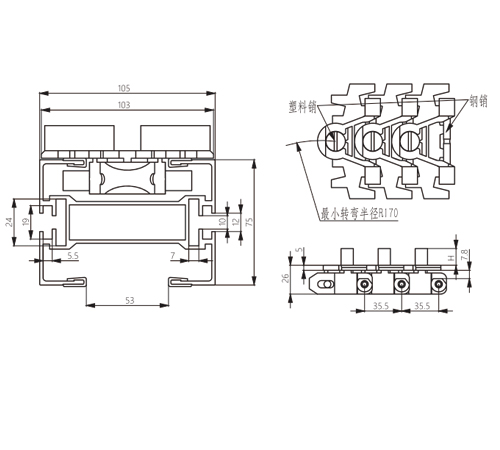

| FL103-LB-SDB | 103 | 1.81 | R170 | POM | 3100 | SUS |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Baffle Height | Suitable for larger items, especially when the balance point is off-center, with higher load-bearing capacity; such as large ball bearings, turbine rotors, seat belt brackets, motor steering arm components, boxes, etc. | ||
| 35.5 | 6 | RD100 | 7/12/15/20/30 | |||
