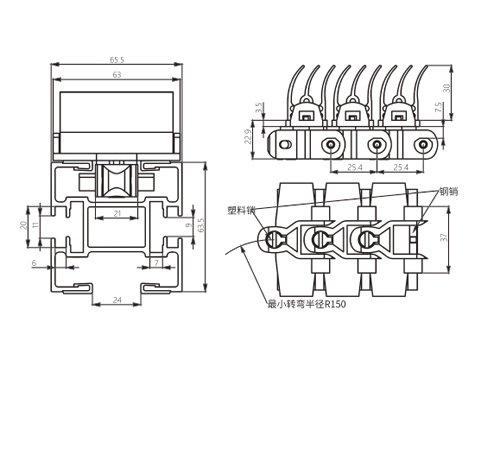

| Chain Plate Ref | Width | Height | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL63-LB-JP | 63 | 0.7 | R150 | POM | 2100 | SUS201 |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Flexible wedge chains are used for vertical transport in vertical lateral conveyor systems. They are suitable for conveying products such as glass and plastic bottles, soft drink cans, and cardboard boxes. Two sets of conveyor systems with flexible wedge chains are installed facing each other to form a vertical lateral conveyor system. | |||
| 25.4 | 4 | RD70 | ||||
