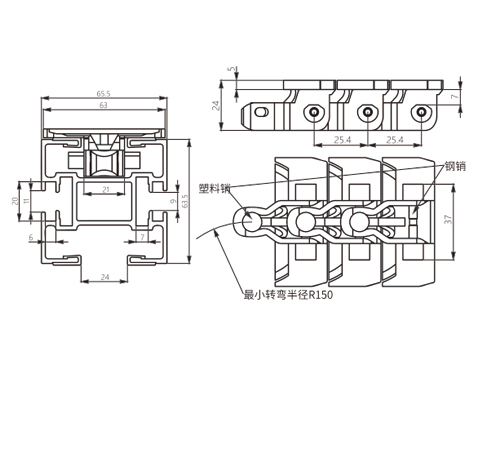

| Chain Plate Ref | Width | Height | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL63-LB-WFYY | 63 | 0.93 | R150 | POM | 2100 | SUS201 |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | It features low noise and long-lasting wear resistance. | |||
| 25.4 | 4 | RD95 | ||||
