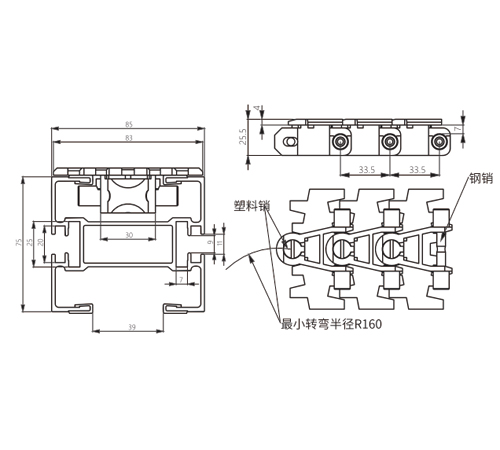

| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| FL83-LB-PB | 83 | 0.7 | R160 | POM | 2100 | SUS201 |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | It is mainly suitable for conveying food, beverages and various other items. The special design of the pin installation makes it easy to disassemble and is safe and reliable. | |||
| 25.4 | 4 | RD70 | ||||
