| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||

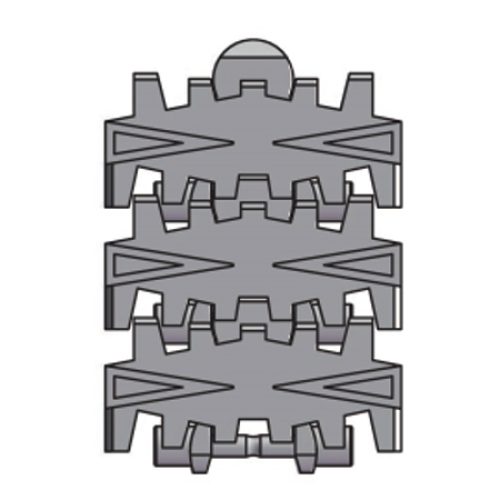

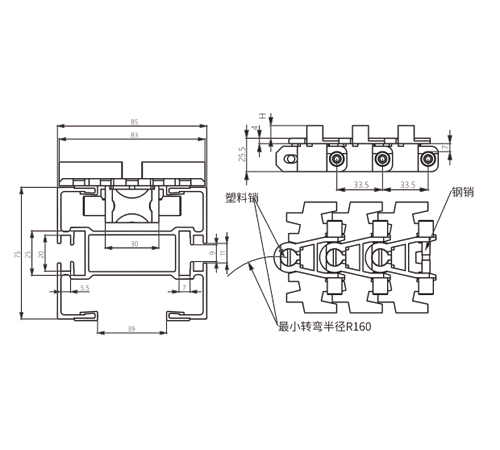

| FL83-LB-SDB | 83 | 0.93 | R160 | POM | 2100 | SUS201 |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Baffle Height | Wide range of applications. Examples include ball valves, water meters, pie boxes, beverage cans, yogurt containers, dry cell batteries, plastic bottles, dairy cartons, paint cans, and socks. | ||
| 25.4 | 4 | RD95 | 7/15/20 | |||
