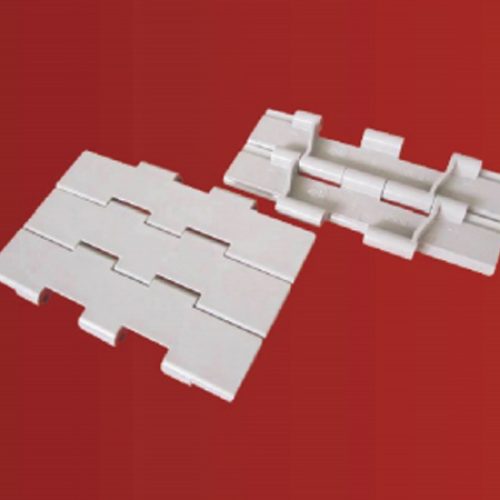

Slat Top Chains Plastic–HL 821

i18-1

Slat Top Chains Plastic–HL 821

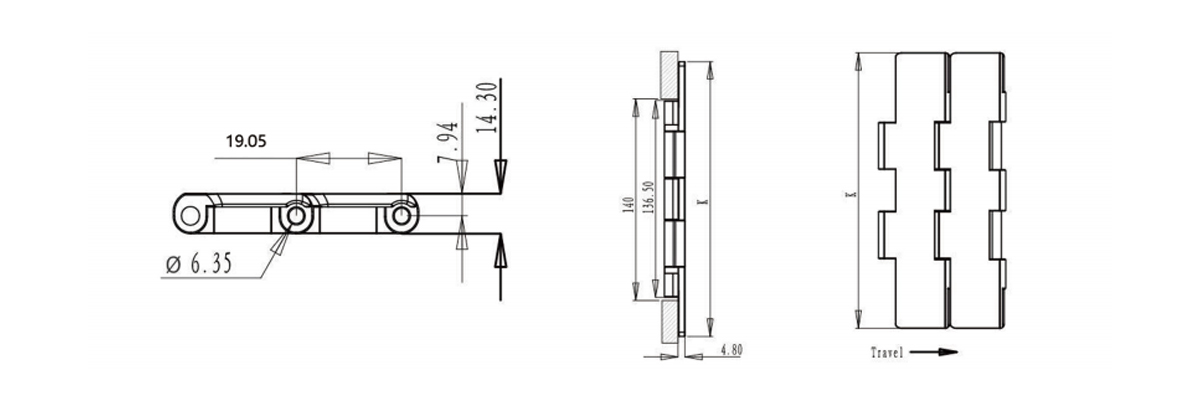

PITCH: 38.1mm
Chain Material: POM
Pin Material: SS201/SS304
Thickness: 4mm
Straight or Turnable: Straight

Product Details

Product Parameters

Chain Type Plate Width K Working Load(Max.)N Chain Weight
mm Inch Kg/m
821-K750 190.5 7.5 2600 2.59
821-K1000 254.0 10.0 2600 3.08
821-K1200 304.8 12.0 2600 3.55

*Standard Length: 3.048m/10 feet
