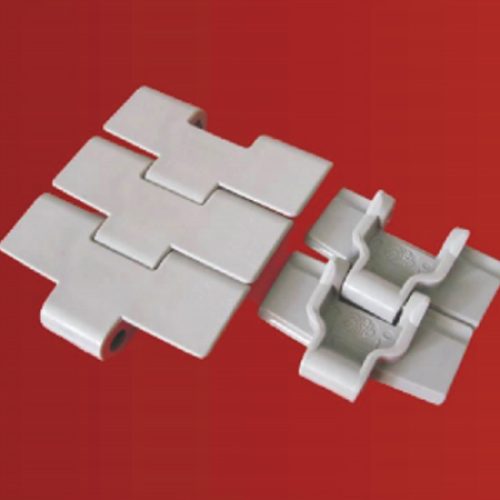

Slat Top Chains Plastic–HL 880

i14-1

Slat Top Chains Plastic–HL 880

PITCH: 38.1mm
Chain Material: POM
Pin Material: SS201/SS304
Thickness: 4mm
Straight or Turnable: Turnable

Product Details

Product Parameters

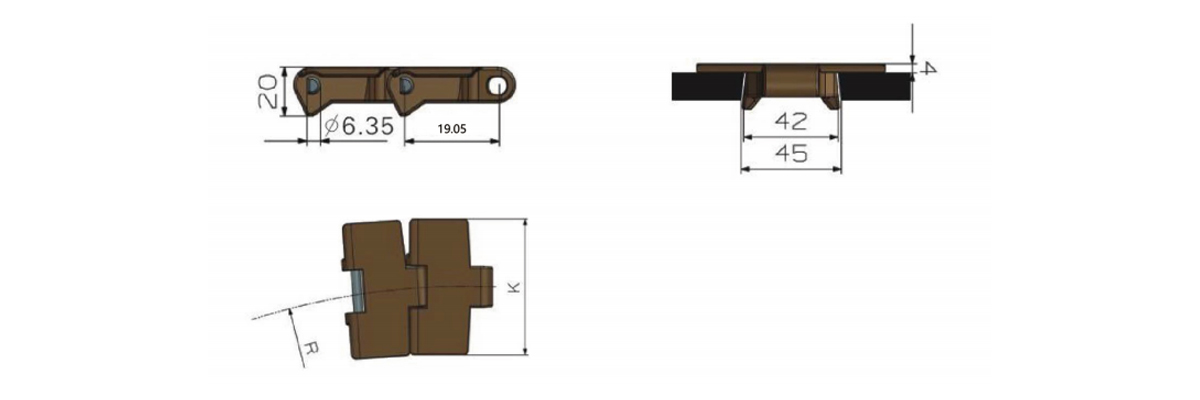

Chain Type Plate Width K Radius R Min. Working Load(Max.)N Chain Weight
mm Inch 430/2Cr13 Kg/m
880-K325 82.6 3.25 460 2000 0.89
880-K450 114.3 4.50 500 2000 1.04

*Standard Length: 3.048m/10 feet
