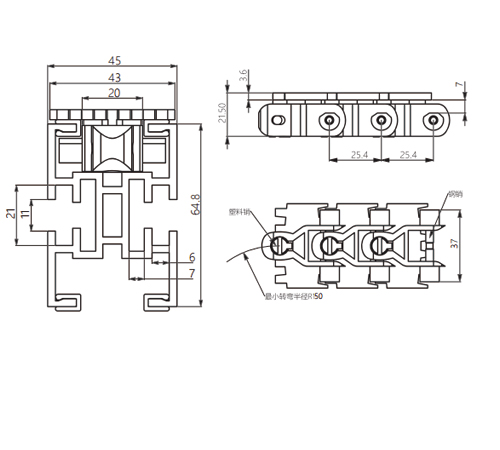

| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | M(21°C) | |||
| FL44-LB-PB | 43 | 0.79 | R150 | POM | 2100 | SUS201 |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Note: Mainly used in tobacco manufacturing | |||
| 25.4 | 4 | RD70 | ||||
