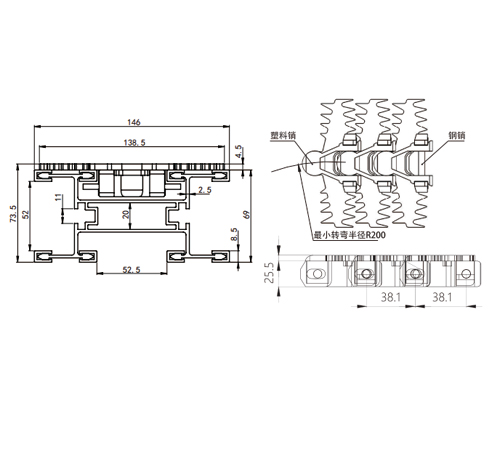

| Chain Plate Ref | Width | Weight | Radius R Min. | Chain Plate Material | Working Load(Max.) | Pin Material |
| mm | (Kg/m) | mm | N(21°C) | |||
| LK140-LB-CX | 140 | 1.60 | R200 | POM | 2100 | SUS |
| Pitch(mm) | Pin Diameter(mm) | Curl Radius R(Min.)mm | Suitable for larger items, especially when the balance point is off-center, with higher load-bearing capacity; such as roller bearings, balls, weight boxes, gears, brake discs, hydraulic pumps, etc. | |||
| 38.1 | 6 | RD170 | ||||
